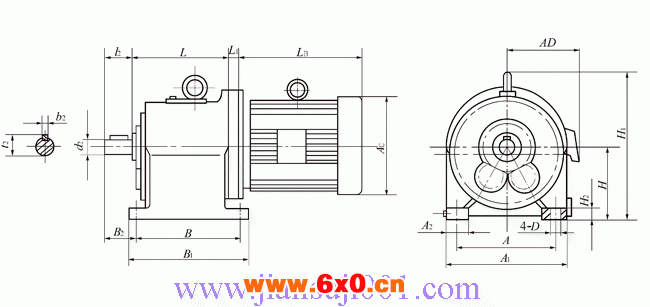

TY系列同轴式硬齿面齿轮减速器外形尺寸ZBJ19009-88
单位：mm
规格 | d2 (m6) | l2 | b2 | t2 | H | L | H1 | B2 | B | B1 | A | A1 | A2 | H2 | D | 重量 ≈(kg) | 润滑油量 ≈I |
50 | 24 | 36 | 8 | 27 | 112 | 178 | 230 | 47 | 180 | 220 | 160 | 200 | 40 | 25 | 12 | 28 | 0.6 |
63 | 25 | 42 | 8 | 28 | 132 | 206 | 271 | 60 | 205 | 245 | 160 | 200 | 40 | 25 | 14.5 | 35 | 0.9 |
80 | 35 | 58 | 10 | 38 | 180 | 242 | 362 | 81 | 240 | 290 | 210 | 260 | 50 | 30 | 18.5 | 47 | 1.6 |
100 | 45 | 82 | 14 | 48.5 | 200 | 261 | 398 | 103 | 275 | 330 | 260 | 320 | 60 | 40 | 24 | 69 | 1.8 |
115 | 50 | 82 | 14 | 53.5 | 225 | 273 | 439 | 98 | 285 | 350 | 285 | 350 | 65 | 40 | 24 | 92 | 2.5 |
125 | 55 | 82 | 16 | 59 | 250 | 295 | 480 | 99 | 320 | 390 | 310 | 385 | 75 | 50 | 28 | 104 | 3.1 |
140 | 65 | 105 | 18 | 69 | 265 | 332 | 492 | 127 | 350 | 420 | 350 | 420 | 75 | 50 | 35 | 163 | 3.8 |
160 | 75 | 105 | 20 | 79.5 | 315 | 337 | 585 | 118 | 385 | 480 | 380 | 480 | 100 | 60 | 42 | 193 | 5.9 |
180 | 85 | 130 | 22 | 90 | 355 | 368 | 638 | 141 | 405 | 500 | 425 | 535 | 110 | 70 | 42 | 269 | 7.5 |
200 | 95 | 130 | 25 | 100 | 375 | 394 | 686 | 147 | 425 | 530 | 480 | 590 | 110 | 70 | 42 | 330 | 9.2 |
224 | 100 | 165 | 28 | 106 | 425 | 430 | 795 | 185 | 460 | 560 | 515 | 655 | 140 | 80 | 48 | 449 | 12 |
250 | 110 | 165 | 28 | 106 | 475 | 472 | 875 | 191 | 480 | 580 | 585 | 725 | 140 | 80 | 48 | 623 | 18.3 |
注：1、重量不包括电机重量。
2、尺寸LB、AC、AD根据直联的电机，查相应的电机尺寸。
长度尺寸L1
单位：mm
规格 | 电机型号 | ||||||||||
Y80 | Y90 | Y100 | Y112 | Y132 | Y160 | Y180 | Y200 | Y225 | Y250 | Y280 | |
50 | 0 | 0 | — | — | — | — | — | — | — | — | — |
63 | 0 | 0 | — | — | — | — | — | — | — | — | — |
80 | — | —3 | 0 | 0 | — | — | — | — | — | — | — |
100 | — | —10 | 0 | 0 | 5 | — | — | — | — | — | — |
112 | — | —16 | －6 | —46 | 0 | 30 | 30 | — | — | — | — |
125 | — | — | －10.5 | —10.5 | 0 | 22 | 22 | — | — | — | — |
140 | — | — | －9.5 | —9.5 | 0 | 22 | 22 | 22 | — | — | — |
160 | — | — | —16 | —16 | —11 | 17 | 17 | 17 | 47 | — | — |
180 | — | — | —14 | —14 | —13 | 16 | 16 | 16 | 45 | — | — |
200 | — | — | —24 | —24 | —19 | 9 | 9 | 9 | 39 | 39 | 39 |
224 | — | — | — | — | —19 | 0 | 0 | 0 | 22 | 22 | 22 |
250 | — | — | — | — | —21 | —14 | —14 | －14 | 16 | 16 | 16 |
注：表中带负号者，其数值为电机凹入减速器的长度值。
