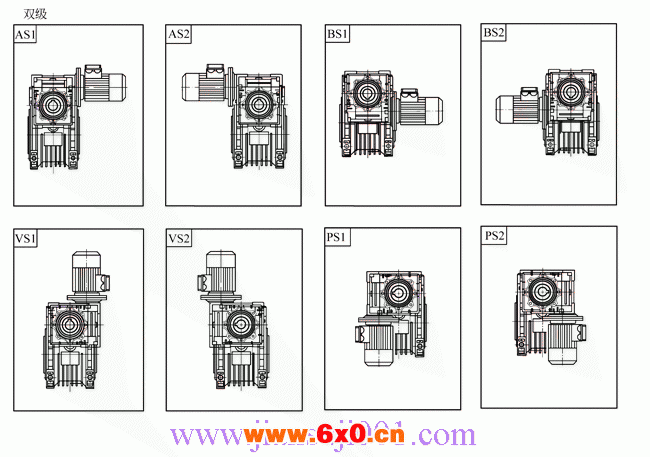

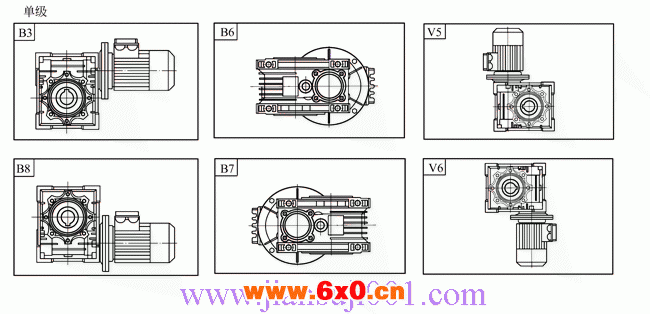

安装形式
附件

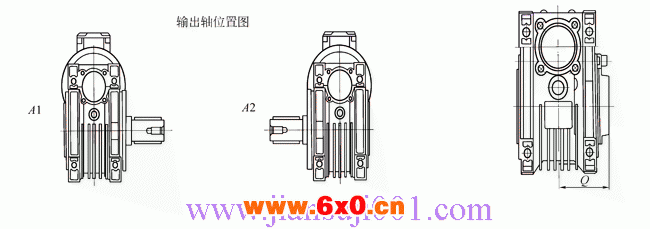

1．单输出轴A
2．双输出轴B
3．防护罩D
尺寸 | 规格 | ||||||
40 | 50 | 63 | 75 | 90 | 110 | 130 | |
Q | 50 | 58 | 69 | 74 | 86 | 94 | 102 |

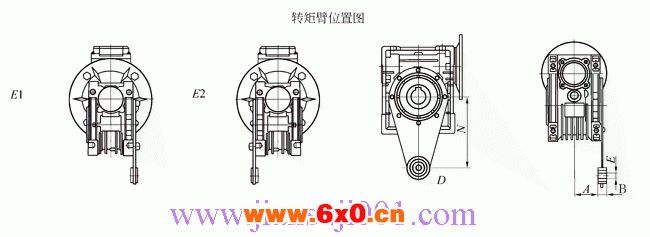

4．转矩臂E
尺寸 | 规格 | |||||||
30 | 40 | 50 | 63 | 75 | 90 | 110 | 130 | |
N | 85 | 100 | 100 | 150 | 200 | 200 | 250 | 250 |
A | 24 | 31.5 | 38.5 | 49 | 47.5 | 57.5 | 62 | 69 |
E | 8 | 10 | 10 | 10 | 20 | 20 | 25 | 25 |
D | 15 | 18 | 18 | 18 | 30 | 30 | 35 | 35 |
B | 14 | 14 | 14 | 14 | 25 | 25 | 30 | 30 |

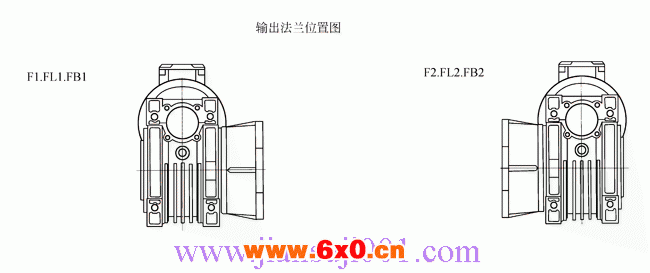

5．输出法兰E
