A球微型蜗杆减速机转矩臂尺寸

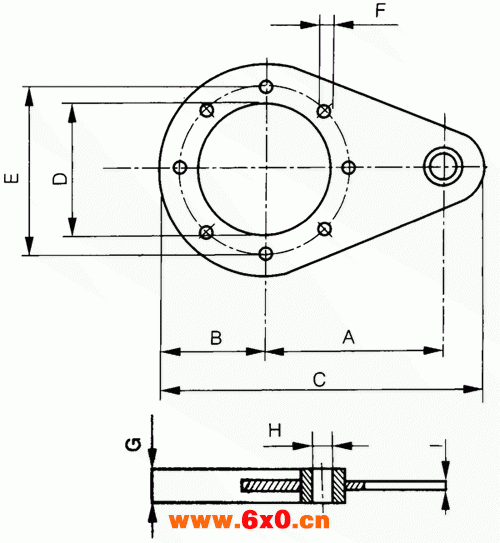

转矩臂尺寸
型号 | A | B | C | D | E | F | G | H | I |
25 | 70 | 33 | 118 | 45 | 55 | 7 | 14 | 8 | 6 |
30 | 85 | 38 | 138 | 55 | 65 | 7 | 14 | 8 | 6 |
40 | 100 | 44 | 162 | 60 | 75 | 7 | 14 | 10 | 12 |
50 | 100 | 50 | 168 | 70 | 85 | 9 | 14 | 10 | 12 |
63 | 150 | 55 | 223 | 80 | 95 | 9 | 14 | 10 | 10 |
75 | 200 | 70 | 300 | 95 | 115 | 9 | 25 | 20 | 20 |
90 | 200 | 80 | 310 | 110 | 130 | 11 | 25 | 20 | 20 |
110 | 250 | 100 | 385 | 130 | 165 | 11 | 30 | 25 | 25 |
130 | 250 | 125 | 410 | 180 | 215 | 14 | 30 | 25 | 25 |
