A球微型蜗杆减速机单向/双向输出轴尺寸

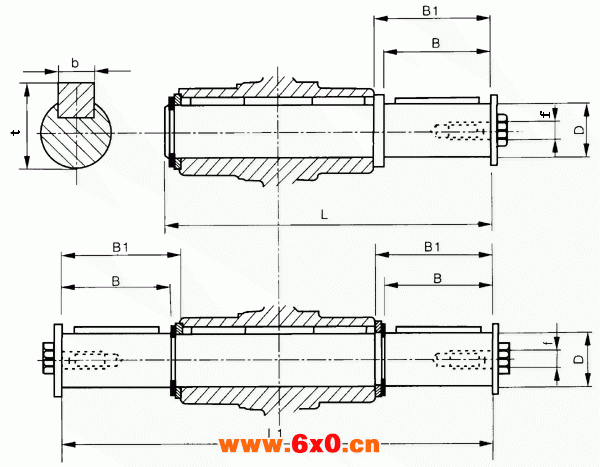

单向/双向输出轴尺寸
型号 | D(h6) | B | B1 | L | L1 | f | b | t |
25 | 11 | 23 | 25.5 | 81 | 101 | - | 4 | 12.5 |
30 | 14 | 30 | 32.5 | 102 | 128 | M6 | 5 | 16 |
40 | 18 | 40 | 43 | 128 | 164 | M6 | 6 | 20.5 |
50 | 25 | 50 | 53.5 | 153 | 199 | M10 | 8 | 28 |
63 | 25 | 50 | 53.5 | 173 | 219 | M10 | 8 | 28 |
75 | 28 | 60 | 63.5 | 192 | 247 | M10 | 8 | 31 |
90 | 35 | 80 | 84 | 234 | 308 | M12 | 10 | 38 |
110 | 42 | 80 | 84.5 | 249 | 324 | M16 | 12 | 45 |
130 | 45 | 80 | 85 | 265 | 340 | M16 | 14 | 48.5 |
