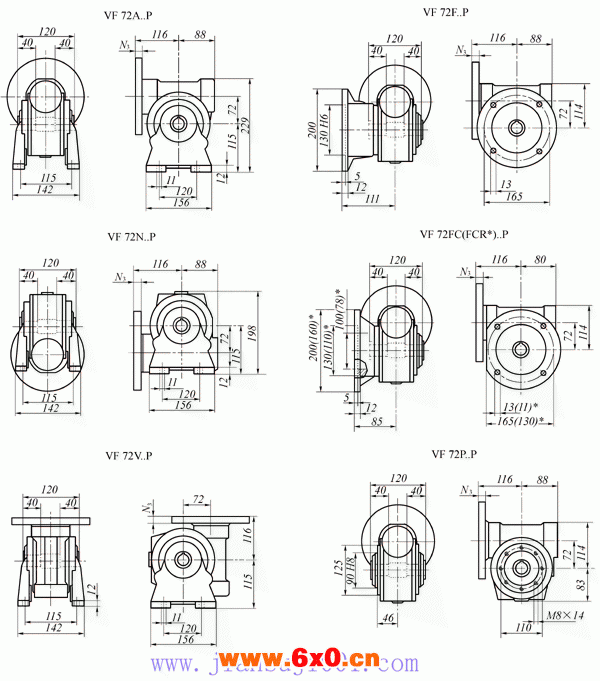

VF72..P系列蜗轮蜗杆减速机外形及安装尺寸
A.N.V.F FC.FC R.P | VF72 | ||||||||

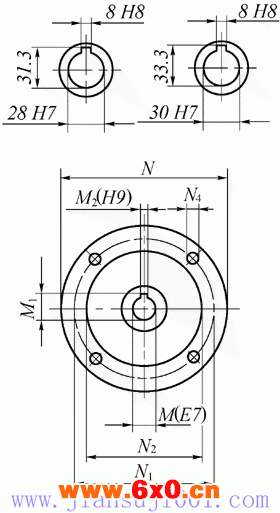

M | M1 | M2 | N | N1 | N2 | N3 | N4 | kg | |
VF72_P71B5 | 14 | 16.3 | 5 | 160 | 130 | 110 | 12 | 9 | 8.2 |
VF72_P80B5 | 19 | 21.8 | 6 | 200 | 165 | 130 | 12 | 11.5 | |
VF72_P90B5 | 24 | 27.3 | 8 | 200 | 165 | 130 | 12 | 11.5 | |
VF72_P100B5 | 28 | 31.3 | 8 | 250 | 215 | 180 | 13 | 13.5 | |
VF72_P80B14 | 19 | 21.8 | 6 | 120 | 100 | 80 | 10 | 7 | |
VF72_P90B14 | 24 | 27.3 | 8 | 140 | 115 | 95 | 10 | 9 | |
VF72_P100B14 | 28 | 31.3 | 8 | 160 | 130 | 110 | 12 | 9 | |
