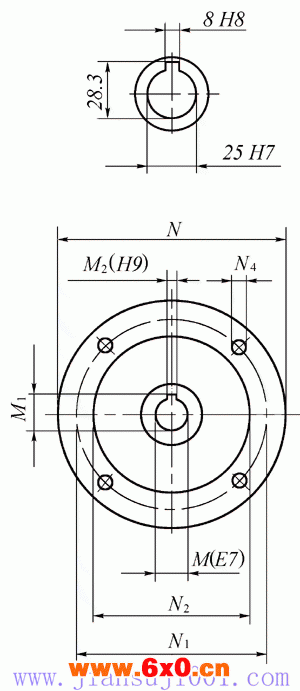

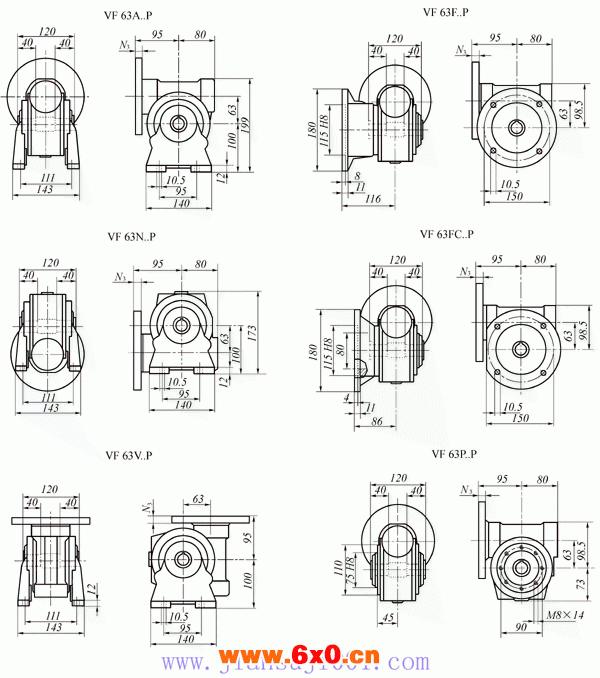

VF63..P系列蜗轮蜗杆减速机外形及安装尺寸
A.N.V F.FC.P | VF63 | ||||||||
M | M1 | M2 | N | N1 | N2 | N3 | N4 | kg | |
VF63_P71B5 | 14 | 16.3 | 5 | 160 | 130 | 110 | 12 | 9.5 | 6 |
VF63_P80B5 | 19 | 21.8 | 6 | 200 | 165 | 130 | 13.5 | 11.5 | |
VF63_P90B5 | 24 | 27.3 | 8 | 200 | 165 | 130 | 13.5 | 11.5 | |
VF63_P71B14 | 14 | 16.3 | 5 | 105 | 85 | 70 | 11.5 | 6.5 | |
VF63_P80B14 | 19 | 21.8 | 6 | 120 | 100 | 80 | 10 | 6.5 | |
VF63_P90B14 | 24 | 27.3 | 8 | 140 | 115 | 95 | 13.5 | 8.5 | |
