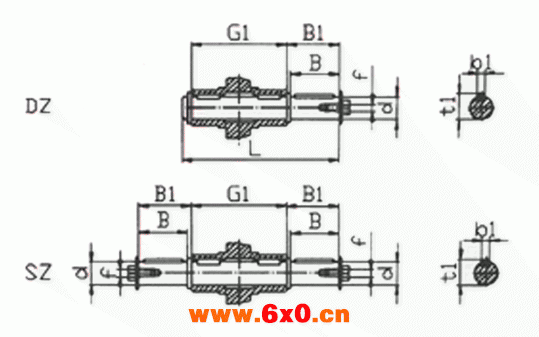

WJL型蜗轮蜗杆减速机单向、双向输出轴尺寸
d(n6) | B | B1 | G1 | L | f | b1 | t1 | |
WJL40 | 19 | 40 | 43 | 78 | 128 | M6 | 6 | 21.5 |
WJL50 | 25 | 50 | 53.5 | 92 | 153 | M10 | 8 | 28 |
WJL63 | 25 | 50 | 53.5 | 112 | 173 | M10 | 8 | 28 |
WJL75 | 28 | 60 | 63.5 | 120 | 192 | M10 | 8 | 31 |
WJL90 | 35 | 80 | 84.5 | 140 | 234 | M12 | 10 | 38 |
WJL110 | 42 | 80 | 84.5 | 155 | 249 | M16 | 12 | 45 |
WJL130 | 45 | 80 | 85 | 170 | 265 | M16 | 14 | 48.5 |
