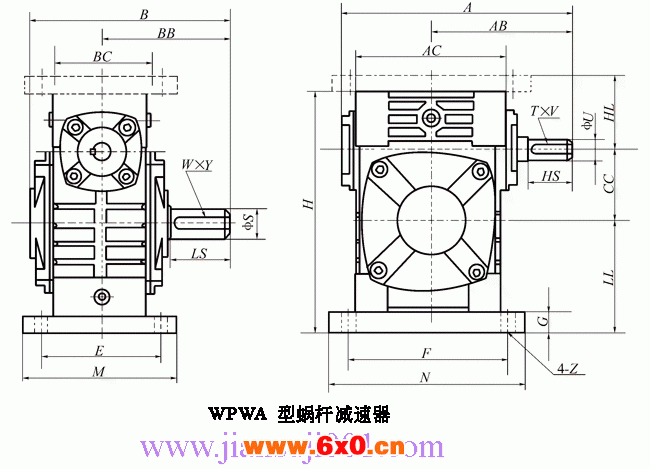

WPWA型蜗轮蜗杆减速器主要尺寸
WPWA型蜗杆减速器主要尺寸 /mm
规格 | 减速比 | A | AB | B | BB | AD | BD | AC | BC | CC | HL | H1L1 | LL | M | N | E |
40 | 1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60 | 149 | 89 | 124 | 79 | 78 | 42 | 95 | 61 | 40 | 35 | 45 | 60 | 100 | 130 | 80 |
50 | 175 | 107 | 150 | 97 | 85 | 50 | 111 | 68 | 50 | 35 | 50 | 80 | 120 | 140 | 95 | |
60 | 198 | 122 | 168 | 112 | 105 | 55 | 127 | 76 | 60 | 42 | 60 | 93 | 130 | 150 | 105 | |
70 | 231 | 140 | 194 | 131 | 125 | 65 | 152 | 86 | 70 | 55 | 73 | 108 | 150 | 190 | 115 | |
80 | 261 | 160 | 214 | 142 | 140 | 70 | 169 | 102 | 80 | 65 | 83 | 123 | 170 | 220 | 135 | |
100 | 322 | 190 | 254 | 169 | 180 | 90 | 216 | 117 | 100 | 80 | 100 | 150 | 190 | 270 | 155 | |
120 | 381 | 229 | 282 | 190 | 220 | 100 | 256 | 124 | 120 | 95 | 120 | 180 | 230 | 320 | 180 | |
135 | 433 | 260 | 317 | 210 | 260 | 110 | 296 | 147 | 135 | 105 | 135 | 215 | 250 | 350 | 200 | |
155 | 504 | 302 | 382 | 252 | 280 | 120 | 345 | 185 | 155 | 103 | 135 | 235 | 280 | 380 | 220 | |
175 | 545 | 325 | 402 | 262 | 320 | 140 | 374 | 192 | 175 | 123 | 160 | 260 | 310 | 410 | 250 | |
200 | 587 | 350 | 467 | 305 | 360 | 150 | 412 | 230 | 200 | 130 | 175 | 290 | 355 | 445 | 290 | |
250 | 705 | 420 | 552 | 360 | 420 | 190 | 500 | 285 | 250 | 150 | 200 | 350 | 460 | 560 | 380 |
规格 | 减速比 | F | G | Z | M1 | N1 | E1 | E2 | E3 | G1 | 输入轴 | 输出轴 | ||||
HS | U | T×V | LS | S | W×Y | |||||||||||
40 | 1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60 | 110 | 10 | 10 | 95 | 187 | 72 | 97 | 70 | 12 | 25 | 12 | 4×2.5 | 28 | 14 | 5×3 |
50 | 110 | 15 | 12 | 111 | 226 | 90 | 110 | 90 | 14 | 30 | 12 | 4×2.5 | 40 | 17 | 5×3 | |
60 | 120 | 18 | 12 | 127 | 257 | 102 | 129 | 100 | 15 | 40 | 15 | 5×3 | 50 | 22 | 6×3.5 | |
70 | 150 | 18 | 15 | 152 | 305 | 120 | 155 | 120 | 20 | 40 | 18 | 6×3.5 | 60 | 28 | 8×4 | |
80 | 180 | 18 | 15 | 174 | 350 | 140 | 180 | 140 | 20 | 50 | 22 | 6×3.5 | 65 | 32 | 10×5 | |
100 | 220 | 20 | 15 | 224 | 410 | 165 | 215 | 190 | 22 | 50 | 25 | 8×4 | 75 | 38 | 10×5 | |
120 | 260 | 25 | 18 | 264 | 494 | 195 | 255 | 220 | 25 | 65 | 30 | 8×4 | 85 | 45 | 14×5.5 | |
135 | 290 | 30 | 18 | 304 | 559 | 230 | 285 | 260 | 30 | 75 | 35 | 10×5 | 95 | 55 | 16×6 | |
155 | 320 | 32 | 21 | 345 | 605 | 250 | 305 | 290 | 35 | 85 | 40 | 12×5 | 110 | 60 | 18×7 | |
175 | 350 | 37 | 21 | 374 | 675 | 273 | 348 | 320 | 40 | 85 | 45 | 14×5.5 | 110 | 65 | 18×7 | |
200 | 390 | 45 | 24 | 424 | 749 | 305 | 390 | 370 | 40 | 95 | 50 | 14×5.5 | 125 | 70 | 20×7.5 | |
250 | 480 | 50 | 28 | 510 | 920 | 375 | 475 | 440 | 45 | 110 | 60 | 18×7 | 155 | 90 | 25×9 |
