产品价格138000.00元/个
最小起订量:1 个可售数量:100 个
包装尺寸(长*宽*高) | 2420x1000x1350mm |
---|---|
产品类型 | 全新 |
功率 | 0.15 |
净重 | 230 |
毛重 | 280 |
生产能力 | 测量皮革的尺寸 |
适用材质 | 皮革 |
适用对象 | 其它 |
操作类型 | 全自动 |
成型类型 | 其它 |
鞋类型 | 皮鞋 |
品牌 | 誉泰鞋机 |
型号 | 卧式量皮机带自动打码功能 |
加工定制 | 是 |
整机尺寸(长*宽*高) | 2300x900X1200 |

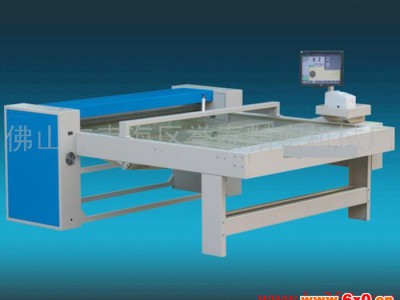

该量革机为满足测量卷曲的皮革而设计,是卧式机和立式机的混合机。进皮处采用立式机原理,便于把打包
后较为卷曲的不平整的皮压平整进入测量,提高了测量精度。出皮处采用卧式机原理,可实现皮上自动打印的
功能。
特别适合贴膜革厂。与普通卧式机相比,占地面积更小。
This machine is developed for measuring the curling leather. It mi×ed the design of vertical and horizontal
type, adopted the vertical method of feeding leather which could flatten the curled leather (especially after
packaging) effectively and increase the measuring accuracy. It adopted the horizontal method of e×iting
leather, during which, there is leather printing function.
This is especially designed for the film coating leather factory. Compared to horizontal type, this one
saves the space.
工作宽(cm) | 外型(长×宽×高)公分 |
180 | 250×230×105 |
200 | 250×240×105 |
220 | 250×260×105 |
240 | 270×280×105 |
260 | 280×300×105 |
280 | 290×320×105 |
300 | 290×340×105 |
320 | 300×360×105 |
