产品详情
欢迎来到驰成电子科技（苏州）有限公司！
- 全国服务热线：18962263288 18962263288
- 移动版
胶带,双面胶带
点击图片查看原图产品价格21.00元/卷
最小起订量：1 卷可售数量：10000 卷
| 厚度 | 0.32mm |
|---|---|
| 基材 | PET（聚酯）布基 |
| 适用范围 | 化工,机械,变压器,电子,马达线束包裹 |
| 颜色 | 黑色 |
| 胶系 | 橡胶基 |
| 长期耐温性 | 150 °C |
| 短期耐温性 | 耐低温-40度 |
| 延伸系数 | 22 % |
| 品牌 | 德莎TESA |
| 加工定制 | 是 |
| 纯肉厚 | 0.32mm |
| 是否双面胶带 | 否 |

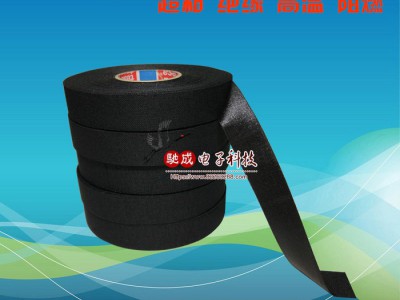

tesa 51006
PET cloth tape for abrasion protection
tesa 51006 is a PET cloth wire harness tape with a rubber based adhesive.
Major Features:
High temperature resistance 150°C / 3000h
Abrasion resistant
Strong adhesion
Color: Black
Main Application
tesa 51006 is designed for the engine compartment, providing abrasion
protection.
Technical Data
Backing material PET cloth
Total thickness 320 μm
Type of adhesive rubber based
Adhesion to steel 4.5 N/cm
Elongation at break 22 %
Tensile strength 175 N/cm
Temperature resistance min. -40 °C
Temperature resistance (3000h) 150 °C
Abrasion resistance (10mmmandrel)
Class C (acc. toLV312)
Abrasion resistance (5mmmandrel)
Class B (acc. toLV312)
Flame resistance as composite Class B (acc. toLV312)
Unwind force (roll width ≤ 9mm) 6 N/roll (30 m/min)
Unwind force (roll width > 9mm) 10 N/roll (30 m/min)
Noise damping (decibel) Class A (acc. toLV312)
Additional Information
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 25 m
Most combinations of width and length are possible
Further dimensions are available upon request
Standard core diameter: 38 mm
